Water treatment 1.0Mpa Residential FRP Pressure Tanks high performance

Ask Lasest Price
Brand Name :	Purescience
Model Number :	Residential 06
Certification :	NSF/ISO9001/SGS
Price :	negotiable
Payment Terms :	L/C, T/T, D/P
Supply Ability :	100000 pcs per month

Add to Cart

Product Details
Company Profile

Water treatment 1.0Mpa Residential FRP Pressure Tanks high performance

Top open 2.5" NPSM FRP pressure filter tanks for water treatment 1.0Mpa Dia. 6" to 13"

Specification

No	Specification		A		B		C		Top	Bottom	Volume		Flow rate	Operation Pressure
No	(In)	(mm)	(In)	(mm)	(In)	(mm)	(In)	(mm)	Top	Bottom	G	L	m3/hr	PSI	Mpa	Bar
1	06×18	150*460	6.0	150	18.0	460	19.3	490	2.5" NPSM	/	2.1	8.1	0.1~0.3	150	1	10
2	07×13	170*330	7.0	181	12.8	325	13.0	330	2.5" NPSM	/	2.2	8.3	0.1~0.3	150	1	10
3	07×24	170×610	7.0	181	24.0	610	25.4	645	2.5" NPSM	/	3.8	15.0	0.1~0.3	150	1	10
4	07×35	170×890	7.0	181	35.0	890	36.4	925	2.5" NPSM	/	5.2	19.7	0.1~0.4	150	1	10
5	08×17	200×430	8.1	206	16.9	430	18.3	465	2.5" NPSM	/	3.1	11.7	0.1~0.3	150	1	10
6	08×20	200×500	8.1	206	18.5	470	19.5	495	2.5" NPSM	/	3.5	13.4	0.1~0.3	150	1	10
7	08*22	200*560	8.1	206	22.1	560	22.9	580	2.5" NPSM		3.9	14.7	0.1~0.3	150	1	10
8	08*24	200*600	7.9	200	24.0	600	24.8	630	2.5" NPSM		4.2	15.9	0.1~0.3	150	1	10
9	08×35	200×890	8.1	206	35.1	890	36.2	920	2.5" NPSM	/	6.6	25.0	0.2~0.4	150	1	10
10	08×44	200×1115	8.0	210	43.9	1115	44.9	1140	2.5" NPSM	/	8.7	32.9	0.2~0.5	150	1	10
11	09×35	220×890	9.1	232	35.1	890	35.7	905	2.5" NPSM	/	8.3	31.4	0.2~0.5	150	1	10
12	09×40	220×1005	9.1	232	39.6	1005	40.4	1025	2.5" NPSM	/	9.5	36.0	0.2~0.5	150	1	10
13	09×42	220×1065	9.1	232	42.0	1065	42.9	1090	2.5" NPSM	/	9.5	36.0	0.2~0.5	150	1	10
14	09×48	220×1215	9.1	232	47.9	1215	48.5	1230	2.5" NPSM	/	12.7	48.0	0.3~0.6	150	1	10
15	10×17	250×430	10.1	257	16.9	430	18.1	460	2.5" NPSM	/	4.8	18.2	0.2~0.4	150	1	10
16	10×35	250×890	10.1	257	35.1	890	36.1	915	2.5" NPSM	/	10.2	38.6	0.5~1.0	150	1	10
17	10×44	250×1115	10.1	257	43.9	1115	45.1	1145	2.5" NPSM	/	13.1	49.6	0.5~1.4	150	1	10
18	10×54	250×1370	10.1	257	54.2	1375	55.2	1400	2.5" NPSM	/	16.4	62.0	0.6~1.5	150	1	10
19	12*48	300×1215	12.1	308	47.9	1215	48.4	1225	2.5" NPSM	/	20.6	78.0	1.6~2.0	150	1	10
20	12×52	300×1320	12.1	308	52.0	1320	53.3	1355	2.5" NPSM	/	22.2	84.0	1.6~2.2	150	1	10
21	12×52	300×1310	12.1	308	51.6	1320	53.3	1345	4.5"Buttress	/	22.2	84.0	1.6~2.2	150	1	10
22	12×65	300×1610	12.1	308	63.4	1650	65.9	1675	2.5" NPSM	/	22.6	112.0	1.8~2.4	150	1	10
23	13×54	330×1370	13.2	334	54.0	1370	55.3	1405	2.5" NPSM	/	27.5	104.0	2.0~2.5	150	1	10

Drawing

Water treatment 1.0Mpa Residential FRP Pressure Tanks high performance

Description

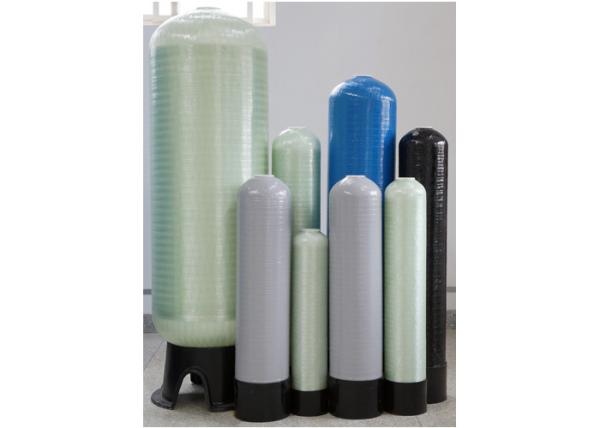

FRP pressure filter tanks are made of high performance composite materials: FRP liner and FRP filament winding outer shell. Our design provides a continuous seamless inner liner shell with a GF PP inlet for higher strength, temperature and pressure capabilities. High quality PE liner with FRP filament winding.

Full choice of pressure tanks:

1. Residential tanks ( 6" to 13" diameter)

2. Commercial tank ( 14" to 24" diameter)
3. Industrial tanks (30" to 63" diameter)
4. Operating Pressure: 150 psi ( 10.5 bars , 1.0 Mpa)
5. Operating temperature: 120F (49 ℃)

Applications:

Residential tanks (Dia.: 6"-13”)	Water filter, water softener
Commercial tank (Dia.: 14"-24”)	Water filter, water softener, prefilter for water treatment and storage
Industrial tanks (Dia.: 30"-63”)	Water filter, water softener, prefilter for water treatment and storage

Competitive advantage

Our filter tanks offer you fiberglass construction with polyethylene inner shell for outstanding performance and

durability in harsh chemical environments. The non-destructive, cost-effective solution for commercial/industrial

water treatment and storage. Each filter tank is 100% factory pressure tested as well as quality inspected

before leaving. FRP tanks have secure bases and are available in many different configurations depending

on your application and space requirements. Product are NSF certified.
