48" Flange top & bottom open FRP pressure tanks for media water filter 1.0Mpa Dia. 30" to 63"

Specification

Drawing

Main technical data

• Material of construction: FRP fiberglass reinforced plastic with PE polyethylene inner shell liner
• Operating parameters:
  Maximum operating pressure: 1.0 Mpa ( 10 Bar / 150 psi)
  Maximum operation temperature: 40 ℃ ( 104 ℉)
• Design parameters: 100, 000 cycle test ( stressing test ) , no leakage

Description

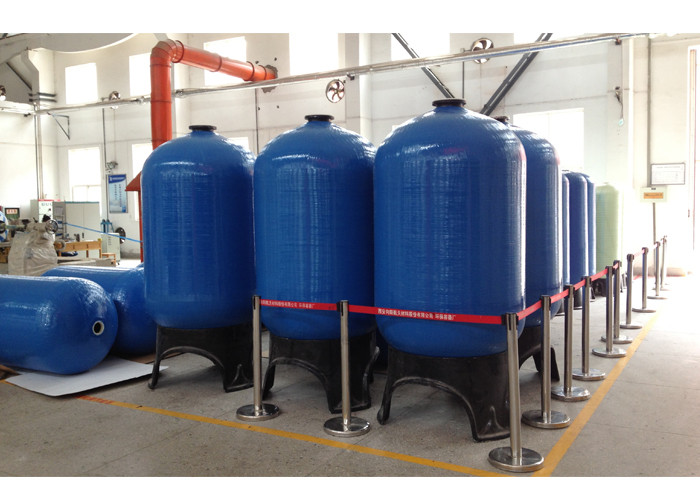

FRP pressure filter tanks are made of high performance composite materials: FRP liner and FRP filament winding outer shell. Our design provides a continuous seamless inner liner shell with a GF PP inlet for higher strength, temperature and pressure capabilities. High quality PE liner with FRP filament winding.

Full choice of pressure tanks:

1.Residential tanks ( 6" to 13" diameter)

2.Commercial tank ( 14" to 24" diameter)
3.Industrial tanks (30" to 63" diameter)
4.Operating Pressure: 150 psi ( 10.5 bars , 1.0 Mpa)
5.Operating temperature: 120F (40 ℃)

Applications:

Competitive advantage

Our filter tanks offer you fiberglass construction with polyethylene inner shell for outstanding performance and durability in harsh chemical environments. The non-destructive, cost-effective solution for commercial/industrial water treatment and storage. Each filter tank is 100% factory pressure tested as well as quality inspected before leaving. FRP tanks have secure bases and are available in many different configurations depending on your application and space requirements. Product are NSF certified.

Focus on low-carbon energy and environment protection technology, we design and manufacture fluid processing and control products to give our contribution to the sustainable energy develop.

Lots of mega projects have been installed with our products, Shanghai expo center, Shanghai Disney energy center, Beijing Z15 tower, Malaysia GDC energy station, etc. Our technology and practical application experience, allow us to provide our client with products and solutions which meet your expectation on building, improving and mainting equipment. The industries we served:

• New energy
• Petroleum and chemical
• Industrial energy
• Oil and gas
• Metals and mining
• Pulp and paper
• Water and waste water treatment
• Marine
• Power
• Refining
• Food and beverage
• Life sciences

Our R&D, customer experience and manufacturing center is located in the “Low energy building science center” Hanghzou, China. As a Provincial class Postdoctoral workstation by collaboration with China State Energy research institute, which ensure our advantage from technician, science research & development, equipment. Our main products includes: flowmeters, roots air blower, pump, as well as design consultancy on RO, UF, NF design.
