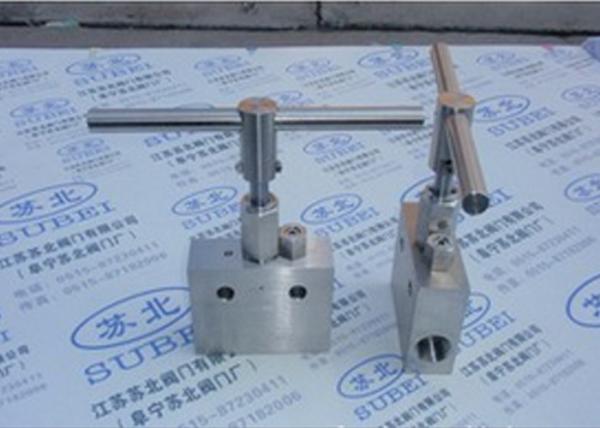

Female screwed stop valve for power plants PN0.6 Mpa to PN80 Mpa DN2 to DN65

Specifications

• Pressure rating: PN0.6 - 80Mpa
• Cutting Ferrule pipe diameter: 2mm -50mm
• Temperature range: -190 ℃ to 220 ℃ (or 70 ℃ to 570 ℃ )
• Suitable fluid media: oil, water, gas and many other corrossive or non-corrosive liquid fluid
• Material of construction: 1Cr18Ni9Ti , SS304 , 316, 316L , 12Cr1Mov , TA2 , F55 , C-276 , F51
• Flow direction: bi-direction
• Driven: manually driven
• End Port connection: female thread NPT , DIN , BSP
• Standards: ANSI/AWWA/ASTM/ANSI

Description

No end to applications of pipe fittings, so long no end to the applications of pipes . The list of piping applications continues to expand, its strength, flexibility, very good flow rates and high chemical resistance are qualities which are uniquely suited for the movement or transfer of liquids, steam, solids and air from one point to another. With piping, pipe fittings have many other uses like as follows:

• The transfer of extremely hazardous materials such as chemical and waste.
• Protection of sensitive equipment from high pressures.
• Protection from corrosion and other extreme weather conditions.
• Resistance to household and industrial chemicals.

Materials used:

• Gun Metal
• Cast Steel
• Stainless Steel
• Cast Iron
• Alloy Steel
• Brass
• Bronze
• Aluminum
• Zirconium
• Plastic etc.

Applications

• Chemical / Petrochemical
• Municipal
• Food, Beverage, and Dairy
• Oil and Gas
• Power
• Process Instrumentation
• Pulp and Paper
• Semiconductor
• Marine & dredging
• Sanitation
• Irrigation
• Residential
• Road & highway construction
• Ventilation etc

Competitive advantage

• AutoCAD is used to design products and optimize structures

• Cast Process Design by by Castsoft CAD and CAE

• Strict Manufacturing Process control

• Quality Control Of The Casting Material

• Metal Material Laboratory for test of compositional, metallographic & mechanical property

• Perfect apperance

Focus on low-carbon energy and environment protection technology, we design and manufacture fluid processing and control products to give our contribution to the sustainable energy develop.

Lots of mega projects have been installed with our products, Shanghai expo center, Shanghai Disney energy center, Beijing Z15 tower, Malaysia GDC energy station, etc. Our technology and practical application experience, allow us to provide our client with products and solutions which meet your expectation on building, improving and mainting equipment. The industries we served:

• New energy
• Petroleum and chemical
• Industrial energy
• Oil and gas
• Metals and mining
• Pulp and paper
• Water and waste water treatment
• Marine
• Power
• Refining
• Food and beverage
• Life sciences

Our R&D, customer experience and manufacturing center is located in the “Low energy building science center” Hanghzou, China. As a Provincial class Postdoctoral workstation by collaboration with China State Energy research institute, which ensure our advantage from technician, science research & development, equipment. Our main products includes: flowmeters, roots air blower, pump, as well as design consultancy on RO, UF, NF design.
