Vertical pump anti corrosion for chemical filter in plating water
3.75kw
Description:
This chemically resistance pump is a really tough, all machined
pump, and designed for years of trouble-free operation. This pump
features a cantilevered, sleeved SS shaft which eliminates bearings
and seals, resulting in a pump that can run dry without damage. A
vapor seal between the rotating shaft and the support column
protects the motor. The compound impeller prevents liquid from
rising in the column, even at maximum TDH, while the semi-enclosed
bottom impeller provides efficient flow performance at low
horsepower.
The unique characteristic of the pump is its ability to perform on
continuous duty as a level control when an optional suction
extension pipe is installed.
Discharge pipe assembly, suction extension and suction strainer are
available options.
Specifications:
| Model | Inlet/outlet | Power | 50HZ | 60HZ | Weight (kg) |
| Ph | P | HP | Curve | Flow(L/min) | Head(m) | Curve | Flow(L/min) | Head(m) |
| SEGP/F5012 | 2" x 1.5" | 3 | 2 | 1 | a | 290 | 9.5 | A | 310 | 11 | 32 |
| SEGP/F5022 | 2" x 1.5" | 3 | 2 | 2 | b | 366 | 13 | B | 380 | 15 | 37 |
| SEGP/F5032 | 2" x 1.5" | 3 | 2 | 3 | c | 416 | 16.5 | C | 430 | 18 | 40 |
| SEGP/F6522 | 2.5" x 2" | 3 | 2 | 2 | d | 450 | 15 | D | 500 | 20 | 45 |
| SEGP/F6532 | 2.5" x 2" | 3 | 2 | 3 | e | 500 | 20.5 | E | 550 | 22 | 46 |
| SEGP/F6552 | 2.5" x 2" | 3 | 2 | 5 | f | 766 | 21 | F | 850 | 24 | 60 |
| SEGP/F7552 | 3" x 2.5" | 3 | 2 | 7.5 | g | 933 | 25 | G | 1100 | 31 | 92 |
| SEGP/F75102 | 3" x 2.5" | 3 | 2 | 10 | h | 1050 | 25.5 | H | 1120 | 35 | 110 |
| SEGP/F75152 | 4" x 4" | 3 | 2 | 15 | i | 1750 | 31.5 | I | 2000 | 34 | 123 |
Features:
- Pump body is injected with FRPP or PVDF in one piece, chemical
resistance to acid, alkali
- Temperature range: FRPP 65 C, PVDF: 90C
- Integrated cover, flanges and turbine wheel
- Design with dry shaft seal to avoid bearings damaging from acid air
- It can be dry run
- It can be used for liquid containing crystallization
- Big round plate stops the pollution of exhaust steam

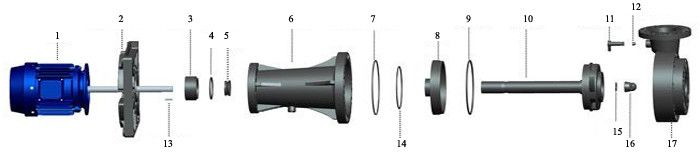

Exploded view
1. motor 2. motor spacer 3. vapor seat seal 4. O-ring
7. V-ring 8. main body 9. O-ring 10. discharge pipe
11. impeller 13. exhaust valve 14. exhaust valve gasket 16.
impeller nut
17. front casing 18. O-ring
Applications:
Electroplating solution | PCB industry | Dyeing industry |
Pharmaceutical | Waste water treatment | Effluent treatment plant |
Water treatment | Food processing cleaning | Photographic |
Chemical | Petrochemical | beverage |
Waste gas scrubber | Waste gas absorption tower | Reaction tank |
Examples
Competitive advantage
These filter chambers are designed for filtering process solutions
where clarification will extend operating life and
improve quality. The filtration vessels and chemical pumps are made
by one piece injection non-
metallic soultion contact plastic, CPVC, FRPP (Fiber glass
reinforced polyepropylene), PVDF, which features
heavy duty construction, chemical, acid/alkali resistance.
