Utility water flow meters by magnetic flowmeter, PTFE liner, remote display, PN16

Product Description

The electromagnetic flow meter, sizes from 1 to 24 inches. It has no parts to obstruct flow resulting in no pressure loss and the 0.75% accuracy is not affected by temperature, pressure, viscosity, density or flow profile. With no moving parts, practically no maintenance is required. The chloroprene rubber sensor liner is suitable for liquid temperatures from -13 to 176°F and is compatible with most water-based fluids and many chemicals. Contact us for additional chemical compatibility information.

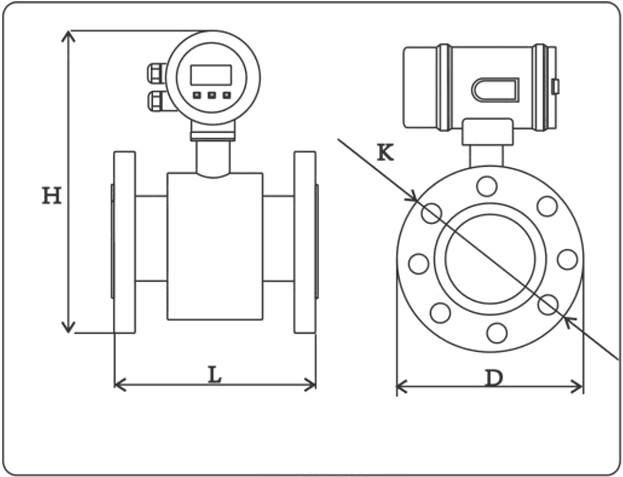

Pipe Diameter, flow volume and product dimension

Industrial applications

Technical data

Features

• Virtually no pressure loss
• Suitable to meter for wide range of conductive liquid media
• No Moving Parts
• Flanges port connection
• RS485 Standard
• Suitable for Pipes diameter p to 2000 mm
• Large meter ratio
• High Accuracy
• 4 to 20 mA / Frequency / Pulse output

Model selection

Applicable metering liquid:

• Conductive liquid media, conductivity > 5 µS/ cm
• Various Conductive aqueous solutions, water solutions, acid & caustics
• Abrasive slurries, sludges and grease bearing liquids, corrosive liquid, municipal tap water, waste water,dirty
  water, effluent, fibrous, viscous, paper mill, food & beverage

Non-applicable metering medial

• Industrial gas, compressed air, steam, or liquid with large content of gas
• Liquid is non-conductive or low conductive, like lubricating oil, clean oil, cryogenic, cooling water, pure
  water, clean gas, etc.

Notice on the selection of local type and remote type:

Remote type means the transmitter and converter display are mounted in different locations, it’s suggested to select
remote type in the following conditions:

• Ambient temperature or converter display sunshine temperature is over 60 ℃
• High humidity or corrosive air existed
• Serious pipe vibration
• Magnetic meter need be suspended or submersible, uneasily read out
• Other abrasive condition

Competitive advantage

• Compliance to international standards: ISO14001, GB/T28001, ISO9001-2008 / GB/T50430
• Strict process control
• Advanced calibration equipment
• Engineer team

Focus on low-carbon energy and environment protection technology, we design and manufacture fluid processing and control products to give our contribution to the sustainable energy develop.

Lots of mega projects have been installed with our products, Shanghai expo center, Shanghai Disney energy center, Beijing Z15 tower, Malaysia GDC energy station, etc. Our technology and practical application experience, allow us to provide our client with products and solutions which meet your expectation on building, improving and mainting equipment. The industries we served:

• New energy
• Petroleum and chemical
• Industrial energy
• Oil and gas
• Metals and mining
• Pulp and paper
• Water and waste water treatment
• Marine
• Power
• Refining
• Food and beverage
• Life sciences

Our R&D, customer experience and manufacturing center is located in the “Low energy building science center” Hanghzou, China. As a Provincial class Postdoctoral workstation by collaboration with China State Energy research institute, which ensure our advantage from technician, science research & development, equipment. Our main products includes: flowmeters, roots air blower, pump, as well as design consultancy on RO, UF, NF design.
