Flange Diameter 40m Fish Farming Water Bladder Tanks

Ask Lasest Price
Brand Name :	Purescience
Model Number :	D366H152
Certification :	ISO9001/SGS
Price :
Payment Terms :	L/C, T/T, D/P
Supply Ability :	1000 sets per monthy
Delivery Time :	2-3 weeks

Add to Cart

Product Details
Company Profile

Flange Diameter 40m Fish Farming Water Bladder Tanks

Water bladder tanks For Fish Farming, Aquaculture Fish Tanks, Fish Farm Pond, Fish Farm Steel Basin

Product basic introduction

An aquacluture tanks solution, is used the steel bolted tanks, it's prefabricated with arc steel panel, bolts&nuts. The Foldable Home Farm Garden Use Flexible Water Tank Water Bladder is a self-supporting water tank that automatically stands when infused with water and does not require human intervention.

We offer wide range of performance materials which are available to meet different customer needs The fully customized length, width, and height are suitable for places with high space requirements, such as in-vehicle transportation, and the car is custom-made for all types of vehicles. It has the advantages of anti-vibration, anti-UV, good sealing, anti-corrosion, long service life, and convenience.

Specification

Tank body material	corrugated galvanized steel
Diameter range	3 - 40 m, or customized
Capacity	4 - 2200 cbm
Fastners	bolts & nuts, column strengthen
Liner	PVC/TPU tarpulin/canvas

Flange Diameter 40m Fish Farming Water Bladder Tanks

Specifications:

Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity
(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)
1.86	1.52	4.1	8.24	1.52	81	14.64	1.52	255	21.96	1.52	575
	2.31	6.2		2.31	123		2.31	388		2.31	874
	3.08	8.3		3.08	164		3.08	518		3.08	1165
	3.85	10.3		3.85	205		3.85	647		3.85	1457
	4.62	12.4		4.62	246		4.62	777	22.88	1.52	624
2.74	1.52	9	9.15	1.52	100	15.56	1.52	288		2.31	949
	2.31	13		2.31	151		2.31	438		3.08	1265
	3.08	18		3.08	201		3.08	585		3.85	1582
	3.85	22		3.85	252		3.85	731	23.79	1.52	674
	4.62	27		4.62	302		4.62	877		2.31	1025
3.66	1.52	16	10.06	1.52	120	17.39	1.52	360		3.08	1367
	2.31	24		2.31	183		2.31	547		3.85	1711
	3.08	32		3.08	244		3.08	730	24.71	1.52	727
	3.85	40		3.85	305		3.85	912		2.31	1106
	4.62	48		4.62	367		4.62	1096		3.08	1475
4.57	1.52	25	10.98	1.52	143	18.3	1.52	399		3.85	1846
	2.31	37		2.31	218		2.31	607	25.62	1.52	783
	3.08	50		3.08	291		3.08	809		2.31	1190
	3.85	62		3.85	364		3.85	1012		3.08	1475
	4.62	75		4.62	437		4.62	1214		3.85	1846
5.49	1.52	36	11.9	1.52	168	19.22	1.52	440	26.54	1.52	840
	2.31	54		2.31	256		2.31	669		2.31	1277
	3.08	77		3.08	342		3.08	893		3.08	1702
	3.85	90		3.85	427		3.85	1116	27.45	1.52	898
	4.62	108		4.62	513		4.62	1339		2.31	1365
6.4	1.52	49	12.81	1.52	195	20.13	1.52	482		3.08	1820
	2.31	74		2.31	297		2.31	734	28.37	1.52	959
	3.08	99		3.08	396		3.08	978		2.31	1458
	3.85	123		3.85	495		3.85	1223		3.08	1944
	4.62	148		4.62	596		4.62	1470	29.28	1.52	1022
7.32	1.52	64	13.72	1.52	224	21.05	1.52	528		2.31	1554
	2.31	97		2.31	341		2.31	802		3.08	2072
	3.08	129		3.08	455		3.08	1070	30.2	1.52	1088
	3.85	161		3.85	568		3.85	1337		2.31	1653
	4.62	194		4.62	682		4.62	1608		3.08	2205

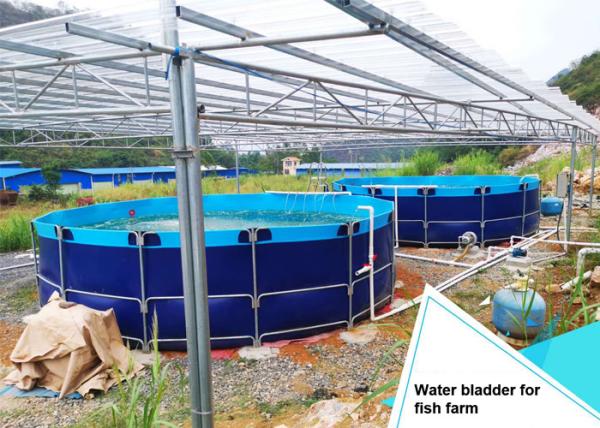

Photos of project

Flange Diameter 40m Fish Farming Water Bladder Tanks
