Open channel ultrasonic flow meters for sewage and waste water treatment 600m3/h converter

Description
It has a proven track record of creating industry-leading innovations with unwavering product accuracy in the open-channel flow measurement world. Empowering you with true and timely flow data for your analysis, enable you to make critical wastewater flow decisions with absolute confidence.

General introduction
The Open channel Ultrasonic Flowmeter is a high precision flow measurement instrument, which use Transit Time Ultrasound principle to measure the flow in a variety of Flumes, Weirs or Troughs.

Main technical index

Dimensions

Features

• Built-in variety of algorithms, suitable for a variety of standard weirs.
• Stable sensors - Suitable for harsh industrial situations
• Isolated 4~20mA current output. Optional spot bus interface.
• The blind zone can be manually set, shielding the probe near the interference signal.
• Calibrated at Factory. And if required we shall do calibration at site.

Sensors

Ultrasonic sensor Static pressure sensor
Applications
Measurement of water flow in Effluent, Waste Water, Rivers, Canals, Drains, Sewage, etc.
Flow Totalizer parameters
Flow measuring range: Depends on the size of the flume.
Maximum Count: 9999999999
Types of suitable weirs: Triangular weir, rectangular weir, Parshall flume, etc.
Display accuracy: 1 count. Overall accuracy depends on the input signal. Different Weirs /
flumes has different accuracies. A triangular weir has 1 to 2% flow error, a rectangular weir
has 1 to 4% accuracy, a Parshall flume has 3% flow error, etc.
Display: 2.8-inch LCD. Displays Height, Flowrate, Total Flow, etc.

Output
Voltage output: DC 12V or 24V
Signal output: RS485/RS232; 4~20mA; 2 channel relay

Troughs

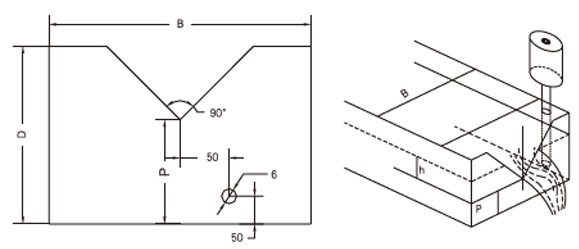

Triangle weirs

Installation sample


Advantage
The production capacity is 20000 ultrasonic converter and 100,000 ultrasonic sensor.

Focus on low-carbon energy and environment protection technology, we design and manufacture fluid processing and control products to give our contribution to the sustainable energy develop.

Lots of mega projects have been installed with our products, Shanghai expo center, Shanghai Disney energy center, Beijing Z15 tower, Malaysia GDC energy station, etc. Our technology and practical application experience, allow us to provide our client with products and solutions which meet your expectation on building, improving and mainting equipment. The industries we served:

• New energy
• Petroleum and chemical
• Industrial energy
• Oil and gas
• Metals and mining
• Pulp and paper
• Water and waste water treatment
• Marine
• Power
• Refining
• Food and beverage
• Life sciences

Our R&D, customer experience and manufacturing center is located in the “Low energy building science center” Hanghzou, China. As a Provincial class Postdoctoral workstation by collaboration with China State Energy research institute, which ensure our advantage from technician, science research & development, equipment. Our main products includes: flowmeters, roots air blower, pump, as well as design consultancy on RO, UF, NF design.
