Alcohol Depositing tank for health care product Food and China Traditional medicine 6000L

Specifications:

• Material of construction: 304ss / 316L
• Volume: 300L to 6000L
• Heat transfer area: 1.8㎡ - 12㎡
• Operation temperature: 20℃ - 40℃
• Jacket set pressure: 0.2Mpa - 0.3Mpa
• Heat transfer coefficient: 150 - 200 KG/㎡h℃
• Mix power: 0.75kw - 5.0kw
• Cooling water consumption: 1350 kg/h - 9600 kg/h

Description:

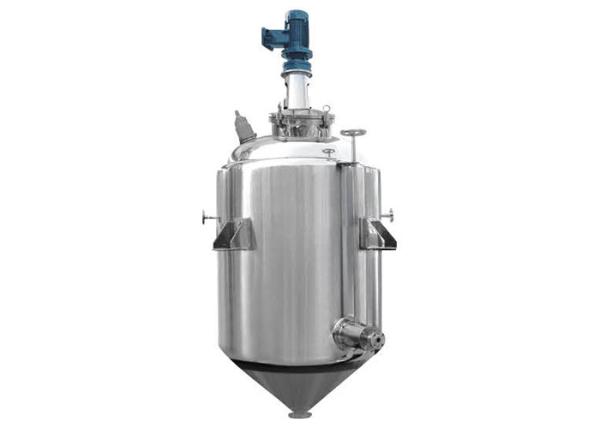

The Alcohol Depositing Tank serves for alcohol deposition to orally-taken liquid of China Traditional medicine, food, and health care product. The deposition container of alcohol is the key equipment in the alcohol deposition procedure.

Features

The device is made with stainless steel, fitted with high pressure automatic spray & clean system. The clip-sleev can contain low temperature cooling water. The drive part is mechanically enclosed. The explosion-proof motor can assure the production progress meeting the GMP standard on quality.
