Transit time Ultrasonic water meter for heat measurement and water
flow Stainless steel
Description:
Bi-directional Ultrasonic water meter are for bulk volumetric flow
measurement. It can measure instantaneous flow and accumulated flow
from two directions. IP68 protection. The UFM has multi line LCD
display and key panel. This is widely used in municipal water
supply, water resource management, industrial water supply,
agriculture, irrigation and gardening.
Features
- Superior hydraulic design, no moving parts, zero wear, eliminate
maintenance
- Advanced ultrasonic technology for precise and ultra reliable
metering
- Extremely wide turndown ratio (R=500)
- Excellent long-term stability and reliability
- Extremely sensitive and accurate in low flow
- Battery powered – above 10 years or up to 20 years life expectancy
- Made with highly durable materials - epoxy coated cast iron,
- Cast iron, cast steel, stainless, various construction material
available for medicine and health as well as sea water and
corrosive fluid metering
- Ruggedized construction - Fully submersible design (IP68)
Parameters
Liquid media: water, sewage, seawater, effulent, municipal tap
water, etc.
Work temperature: 0.1 - 30℃
Environment termpreature: -10 - 45℃
Humidity: <100% RH
Operate pressure: 1.6 Mpa / 2.5 Mpa
Upstream sensitivity: U3
Down stream sensitivity: D0
Climatic and mechanical: class C
EMC compativility class: class E2
Communication: RS485 / USART / Infrared
Signal output: Dual way OCT pulse / TTL pulse / single way 4-20mA
Power supply: lithium battery, 3.6V / 19Ah or DC8-36V
Protection: IP68
Digital display: Multi line 9 digital accumulated flow, 4 digital
instant flow
Data storage: EEPROME / Flash, last 512 days accumulative flow
Measuring cycle: every second, Verification: 4 times / second
Standard: ISO4064, GBT 778-2007
Product overview
- Protection IP68
- Time accumulator and batch controller
- Two way PT1000 temperature transducer, suitable for heat
measurement,
- No rotation and moving parts, no worn out

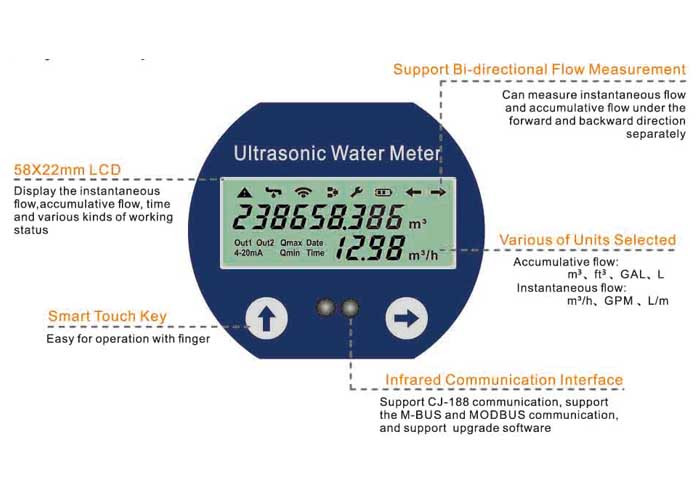

Display and operation
- LCD display of instantaneous flow, accumulative flow, time
- Bi-directional flow measurement
- Display in different units, volume: cubic meter, ft, gallon, liter
& velocity: m3/h, GPM, LPM.
- Touch key panel
- Infrared communication interface
Communication and signal output
RS485 | OCT1 (open collector output 1) |
M-BUS | OCT2 (open collector output 2) |
DC8-36V | C1 (TTL level pulse output 1) |
Two-way 4-20mA output | C2 (TTL level pulse output 2) |
Material
DN15-DN40 Single channel ultrasonic water meter (copper)
DN50-DN40 Dual channel bulk ultrasonic water meter (cast iron)
DN200-DN300 Dual channel large ultrasonic water meter (welded
carbon steel)
Flow range
Nominal D | R | Flow (m3/h) |
Starting flow | Minimal flow (Q1) | Transitional flow (Q2) | Normal flow (Q3) | Overload flow (Q4) |
DN15 | 200 | 0.003 | 0.0125 | 0.020 | 2.500 | 3.125 |
DN20 | 200 | 0.0035 | 0.016 | 0.026 | 3.200 | 4.000 |
DN25 | 200 | 0.007 | 0.020 | 0.032 | 4.000 | 5.000 |
DN32 | 200 | 0.010 | 0.032 | 0.050 | 6.300 | 7.875 |
DN40 | 200 | 0.015 | 0.100 | 0.160 | 20.000 | 25.000 |
DN50 | 100 | 0.030 | 0.400 | 0.640 | 40.000 | 50.000 |
DN65 | 100 | 0.059 | 0.630 | 1.008 | 63.000 | 78.750 |
DN80 | 100 | 0.064 | 1.000 | 1.600 | 100.000 | 125.000 |
DN100 | 100 | 0.094 | 1.600 | 2.560 | 160.000 | 200.000 |
DN125 | 100 | 0.120 | 2.000 | 3.200 | 200.000 | 250.000 |
DN150 | 100 | 0.270 | 2.500 | 4.000 | 250.000 | 312.500 |
DN200 | 100 | 0.315 | 4.000 | 6.400 | 400.00 | 500.00 |
DN250 | 100 | 0.508 | 4.000 | 6.400 | 400.00 | 500.00 |
DN300 | 100 | 0.770 | 6.300 | 10.080 | 630.00 | 787.500 |
Competitive Advantage:
- Compliance to international standards: ISO 4064-2005 , GBT
778.1-2007
- Strict process control
- Advanced calibration equipment
- Engineer team
