48cbm Hot Galvanized Corrugated Steel 200M3 Water Tanks

Hot galvanized corrugated steel 200 m3 water tanks, corrugated galvanized steel water tanks

General introduction

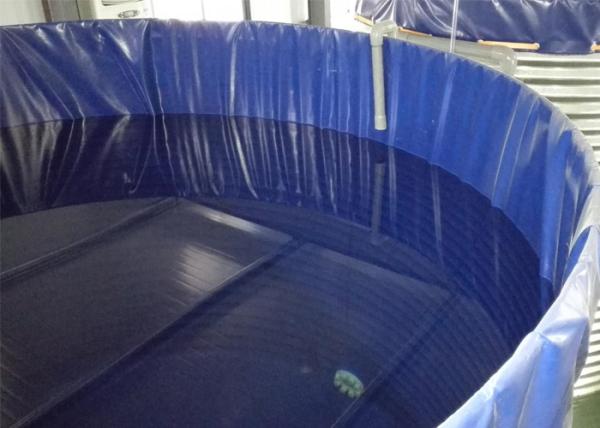

The economic solution for steel water storage tanks, fish farming tanks, shrimp farming tank, steel fish pond basin. The round tank can be easily assembled by corrugated steel panel with bolts and nuts. Inlet, outlet and drainage port can made on site as per requirement.

Specification

Tank body material	corrugated galvanized steel
Diameter range	3 - 40 m, or customized
Capacity	4 - 2200 cbm
Fastners	bolts & nuts, column strengthen
Liner	PVC/TPU tarpulin/canvas

48cbm Hot Galvanized Corrugated Steel 200M3 Water Tanks

Specifications:

Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity
(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)
1.86	1.52	4.1	8.24	1.52	81	14.64	1.52	255	21.96	1.52	575
	2.31	6.2		2.31	123		2.31	388		2.31	874
	3.08	8.3		3.08	164		3.08	518		3.08	1165
	3.85	10.3		3.85	205		3.85	647		3.85	1457
	4.62	12.4		4.62	246		4.62	777	22.88	1.52	624
2.74	1.52	9	9.15	1.52	100	15.56	1.52	288		2.31	949
	2.31	13		2.31	151		2.31	438		3.08	1265
	3.08	18		3.08	201		3.08	585		3.85	1582
	3.85	22		3.85	252		3.85	731	23.79	1.52	674
	4.62	27		4.62	302		4.62	877		2.31	1025
3.66	1.52	16	10.06	1.52	120	17.39	1.52	360		3.08	1367
	2.31	24		2.31	183		2.31	547		3.85	1711
	3.08	32		3.08	244		3.08	730	24.71	1.52	727
	3.85	40		3.85	305		3.85	912		2.31	1106
	4.62	48		4.62	367		4.62	1096		3.08	1475
4.57	1.52	25	10.98	1.52	143	18.3	1.52	399		3.85	1846
	2.31	37		2.31	218		2.31	607	25.62	1.52	783
	3.08	50		3.08	291		3.08	809		2.31	1190
	3.85	62		3.85	364		3.85	1012		3.08	1475
	4.62	75		4.62	437		4.62	1214		3.85	1846
5.49	1.52	36	11.9	1.52	168	19.22	1.52	440	26.54	1.52	840
	2.31	54		2.31	256		2.31	669		2.31	1277
	3.08	77		3.08	342		3.08	893		3.08	1702
	3.85	90		3.85	427		3.85	1116	27.45	1.52	898
	4.62	108		4.62	513		4.62	1339		2.31	1365
6.4	1.52	49	12.81	1.52	195	20.13	1.52	482		3.08	1820
	2.31	74		2.31	297		2.31	734	28.37	1.52	959
	3.08	99		3.08	396		3.08	978		2.31	1458
	3.85	123		3.85	495		3.85	1223		3.08	1944
	4.62	148		4.62	596		4.62	1470	29.28	1.52	1022
7.32	1.52	64	13.72	1.52	224	21.05	1.52
