Fish Farming Bolted 27cbm 2740mm Aquaculture Water Tanks

Ask Lasest Price
Brand Name :	Purescience
Model Number :	D274H152
Certification :	ISO9001/SGS
Price :
Payment Terms :	L/C, T/T, D/P
Supply Ability :	1000 sets per monthy
Delivery Time :	2-3 weeks

Add to Cart

Product Details
Company Profile

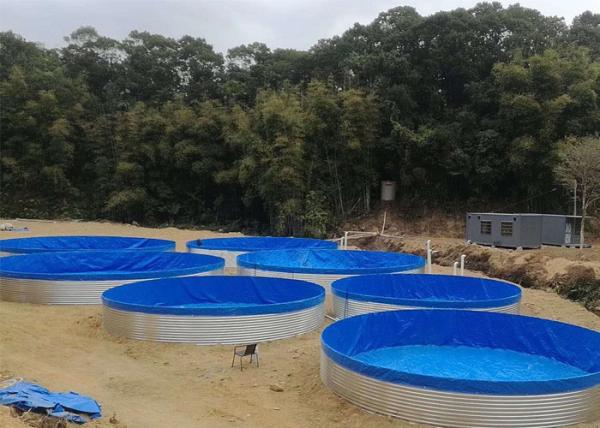

Fish Farming Bolted 27cbm 2740mm Aquaculture Water Tanks

Fish farm steel basin, aquaculture water tanks, steel aquaculture water tanks that diameter

General introduction

Our prefabricated steel bolted water storage tanks, are most economic solution for the storage any type of liquid in commercial and industrial applications. The steel bolted tanks are cost save and reduce labor cost due to its fastly assemble, less shipping space. Therefore, it'll be an ideal solution in water storage, rain collection, fish farming tanks, and many other applications.

Specification

Tank body material	corrugated galvanized steel
Diameter range	3 - 40 m, or customized
Capacity	4 - 2200 cbm
Fastners	bolts & nuts, column strengthen
Liner	PVC/TPU tarpulin/canvas

Fish Farming Bolted 27cbm 2740mm Aquaculture Water Tanks

Specifications:

Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity	Tank dia	Height	Capacity
(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)	(m)	(m)	(m3)
1.86	1.52	4.1	8.24	1.52	81	14.64	1.52	255	21.96	1.52	575
	2.31	6.2		2.31	123		2.31	388		2.31	874
	3.08	8.3		3.08	164		3.08	518		3.08	1165
	3.85	10.3		3.85	205		3.85	647		3.85	1457
	4.62	12.4		4.62	246		4.62	777	22.88	1.52	624
2.74	1.52	9	9.15	1.52	100	15.56	1.52	288		2.31	949
	2.31	13		2.31	151		2.31	438		3.08	1265
	3.08	18		3.08	201		3.08	585		3.85	1582
	3.85	22		3.85	252		3.85	731	23.79	1.52	674
	4.62	27		4.62	302		4.62	877		2.31	1025
3.66	1.52	16	10.06	1.52	120	17.39	1.52	360		3.08	1367
	2.31	24		2.31	183		2.31	547		3.85	1711
	3.08	32		3.08	244		3.08	730	24.71	1.52	727
	3.85	40		3.85	305		3.85	912		2.31	1106
	4.62	48		4.62	367		4.62	1096		3.08	1475
4.57	1.52	25	10.98	1.52	143	18.3	1.52	399		3.85	1846
	2.31	37		2.31	218		2.31	607	25.62	1.52	783
	3.08	50		3.08	291		3.08	809		2.31	1190
	3.85	62		3.85	364		3.85	1012		3.08	1475
	4.62	75		4.62	437		4.62	1214		3.85	1846
5.49	1.52	36	11.9	1.52	168	19.22	1.52	440	26.54	1.52	840
	2.31	54		2.31	256		2.31	669		2.31	1277
	3.08	77		3.08	342		3.08	893		3.08	1702
	3.85	90		3.85	427		3.85	1116	27.45	1.52	898
	4.62	108		4.62	513		4.62	1339		2.31	1365
6.4	1.52	49	12.81	1.52	195	20.13	1.52	482		3.08	1820
	2.31	74		2.31	297		2.31	734	28.37	1.52	959
	3.08	99		3.08	396		3.08	978		2.31	1458
	3.85	123		3.85	495		3.85	1223		3.08	1944
	4.62	148		4.62	596		4.62	1470	29.28	1.52	1022
7.32	1.52	64	13.72	1.52	224	21.05
