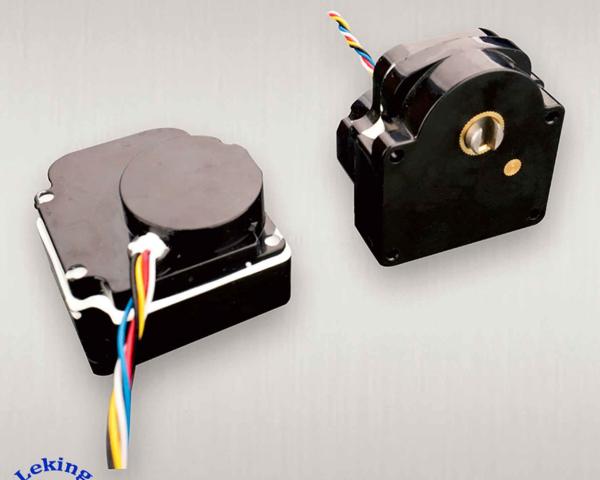

    20mm 1.8NM Torque DC 3.6V Electric Motorized Actuator

    Ask Lasest Price
    Brand Name : Lekin
    Model Number : K06
    Certification : ISO9001/SGS
    Price :
    Payment Terms : T/T, L/C
    Supply Ability : 200000 sets/month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    20mm 1.8NM Torque DC 3.6V Electric Motorized Actuator

    DC 3.6V electric Motorized Actuator/automatic electronic motor mechanism to shut off valve of prepaid Water Meter AMR /aerosol dispenser/fan

    The DC3.6V lithium battery powered electric motorized valve actuator, is usde for closing or opening small water meter with built-in control shut off valve.

    Technical data-Model K06
    1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
    2. Current at idling: <25 mA @ 3.6V, 23ºC
    3. Current with loading: <550 mA (motor #320)
    4. Torque: >1.8 NM (2400:1); >4.5 NM (5000:1)
    5. Open/close time: <10S (2400:1); <20s (5000:1)
    6. Velocity reduction ratio: 1500:1 (DN15/20mm)
    7. Protection: 0

    Wiring diagram

    Wire colorDescription
    Bluesignal of switch on position, open valve
    Whitesignal of public terminal
    Yellowsignal of switch off position, close valve
    Redpower terminal, + positive
    Blackpower terminal, - negative


    Factory overview
    -Production facilities
